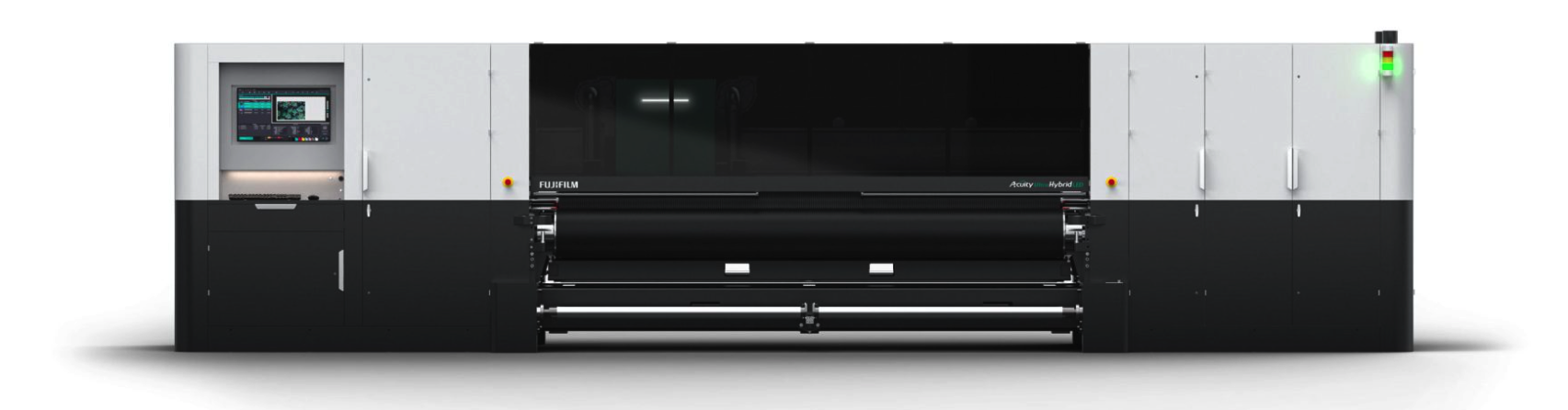

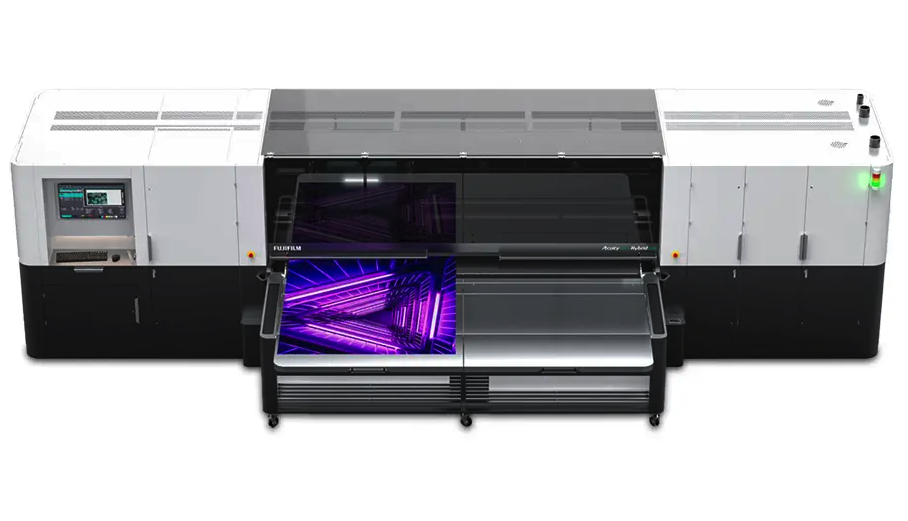

Acuity Ultra Hybrid LED

True Versatility and Supreme Quality

The new blueprint for rigid and roll-to-roll Hybrid LED inkjet printing.

The Acuity Ultra Hybrid LED is a high-end printer for rigid and flexible media for the sign and display market, offering superb, high quality printing in a 3.3m platform.

Featuring an entirely new ink range, Uvijet UH, you can choose between CMYK + LCLM or CMYK + WW 6 channel configurations.

Download Brochure
Download Brochure

Versatility on a massive scale

The Acuity Ultra Hybrid LED is not only ideal for traditional roll-2-roll or rigid applications such as single billboards and signage, it’s also perfect for high-end indoor displays where close viewing requires images to be exceptionally clear and vibrant. With quality comparable to leading water-based inkjet systems, investing in an Acuity Ultra Hybrid LED can help propel your business into new markets.

With its massive media tables and 2-up multi-roll potential, it has the ability to print on a broad range of materials, the Acuity Ultra Hybrid LED gives you the ability to profitably create exhibition graphics, POS displays, high-value graphic art, backlit displays, outdoor displays, outdoor signage and more.



The Acuity Ultra Hybrid LED Difference

Quality at an Industrial Scale

Industrial Construction

Advanced Engineering

Maximize Productivity

Curing Done Right

High Image Quality

Smart Systems

Smart Savings

Easy to Use

Go Green

Robust & Intelligent Machine Build

Superb build quality helps protect the investment in the Acuity Hybrid LED. Substantial steel construction minimizes potential quality issues caused by vibration. Industrial quality components are used throughout the machine build for superb reliability.

No Vibrations

Linear motors for the printhead carriage ensure smooth edge-to-edge printing with no vibrations at the end of the run to deliver accurate ink drop placements. This means no loss in print quality at the print edge and superb registration.

Media Transport

A solid media transport system is also critical to the machine’s performance. Two pairs of rubberized rollers on the front and back of the printer deliver accurate media feed, and provide consistency over long print runs or when accuracy is needed for tiled applications.

Multi-roll Capability Maximizes Productivity

The ability to print multiple rolls simultaneously enables the Acuity Ultra Hybrid LED to produce huge volumes of work. The 3.3 meter model features 2-up multi-roll potential, and includes a massive table, which allows for multiple jobs to be printed simultaneously and maximize output. Designed for maximum efficiency with fast media changeovers and setup to ensure impressive uptime and ease of use.

Industrial UV Curing System

The Acuity Ultra Hybrid LED uses Honle LED lamps for the 6-color & 6-color plus white printer configurations ensuring block free production.

High-quality, high-performance printheads

Kyocera printheads deliver 3.5 pl native drop sizes up to 1200 x 1200 dpi resolution, making use of 5,312 nozzles with the white channel having 10,624.

Mechanical Substrate Detector

The Acuity Ultra Hybrid LED is equipped with ultrasonic media sensors positioned under the rear media tension rollers that detect when media is loaded onto the machine and alert the operator if there is a fault with the media loading, for example if a roll of media has run out, or the media is not tight.

Water-cooled vacuum table



Ink Spitting

The Acuity Ultra Hybrid LED is fitted with a spit function designed to reduce machine downtime. This maintains the print quality and helps to increase the overall consistency of the printed results.

Designed with the operator in mind

As well as technical enhancements to the Acuity Ultra Hybrid LED, there is a strong focus to reduce maintenance and improve serviceability for the operator. A new intuitive GUI, smoked panels allowing the user to view print safely during production, and the integration of clean and dirty working areas to avoid contamination, are all examples of the developments that ultimately save time and money and improve
overall price/performance.

Be Greener with the Acuity Series

UV LED technology has many environmental benefits. At Fujifilm, we’re committed to a greener future for print. Energy-efficient curing systems, including UV LED, help save on energy use.

In addition, Fujifilm’s Uvijet inks meet some of the most stringent product emissions standards in the world, making them a safe, high-quality UV ink suitable for a vast array of industries and uses.

Fujifilm’s Uvijet inks are manufactured at our award-winning facility in Broadstairs, United Kingdom, which is a zero-to-landfill site and powered largely by an onsite solar energy system.

Fujifilm Commitment to Sustainability

Uvijet inks

High-performance Uvijet UH Ink

An entirely new ink range, Uvijet UH, with six colours (CMYK, Lm, Lc) available as standard and white ink also available as an optional extra. The new ink has both Greenguard Gold and AgBB certification.

Superb, High-Density White Ink

The new Hybrid LED has the ability to print high-opacity white as a base, spot color or top layer quickly and cost effectively. With optional white channels you can over-print white directly to clear material and flood white underprint or spot color white on dark substrates for expanded applications.

Uvijet UH has been carefully designed to adhere to a broad range of rigid and flexible substrates, while also matching the exceptionally high quality of the Uvijet GS and AU inks used in the Acuity Ultra R2. The machine and the ink have both been designed by Fujifilm and they work together to maximise quality while also minimising ink usage, helping to keep running costs down and boosting ROI.
